RFID

RFID Reader

One UHF platform, ordered as Long Range for dock doors and gates or Short Range for point-of-sale and desks - the same read event either way.

Download the datasheet (PDF)
Family
RFID
Form factor
Fixed

At a glance

IoTReady RFID Reader, Long Range variant, with an integrated panel antenna

700/s

Peak tag read rate

Gen2X

EPC protocol

5

Uplinks - BLE/Wi-Fi/4G/Eth/USB

IP68

Optional outer enclosure

Overview

IoTReady RFID Reader, Long Range variant, with an integrated panel antenna

Long Range · LR

Impinj E710, 9 dBi panel - dock doors, gates, portals

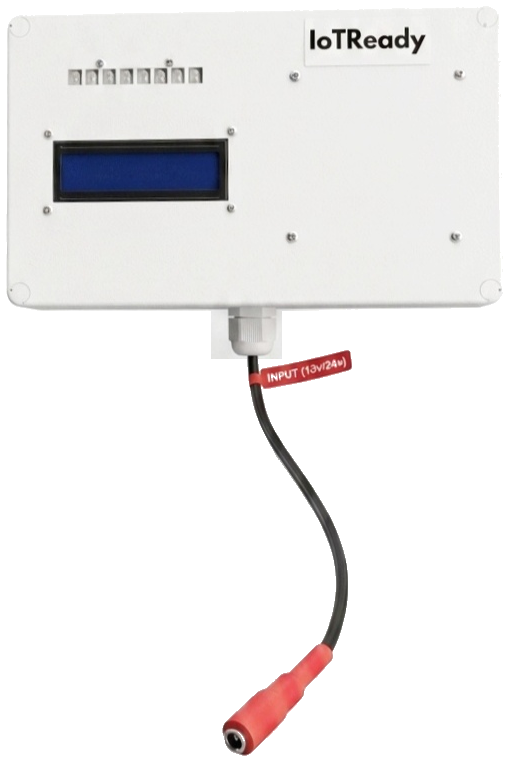

IoTReady RFID Reader, Short Range variant, with a character LCD and a power input cable

Short Range · SR

Impinj E310, 3 dBi antenna, 16×2 LCD, relay - POS, doors, asset desks

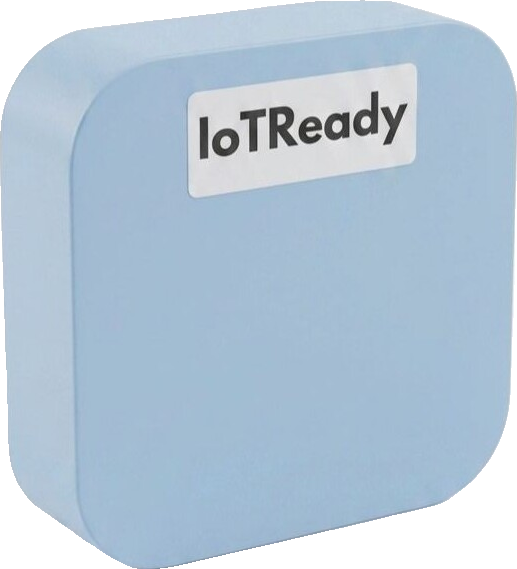

IoTReady RFID Reader, USB Desktop variant, a compact bus-powered enclosure

USB Desktop

The same inventory engine on the bench - 90×90×30 mm, bus-powered

One hardware and firmware platform, ordered in the configuration a site needs. Long Range pairs the Impinj E710 module with a 9 dBi antenna for dock doors, vehicle gates and portal choke points. Short Range pairs the E310 module with a 3 dBi antenna for point-of-sale and desk-level check-in. A Multi-Antenna variant adds four switched ports with per-antenna signal comparison, for direction and lane detection across a wide opening.

All three run the same inventory engine on the device. Tags are read, chunked and timestamped on the reader itself, so a link outage stalls only the upload, which resumes the moment the link returns. The event a host system receives is identical whichever uplink the site ordered.

Specifications

Parameters

Long Range moduleImpinj E710, 9 dBi antenna, up to 15 m typical read range
Short Range moduleImpinj E310, 3 dBi antenna, up to 5 m typical read range
Multi-Antenna variantSame E710 module on 4 switched ports; direction and lane detection
RF output powerUp to 33 dBm, adjustable
ProtocolEPC Class 1 Gen 2 (ISO 18000-6C), Gen2X
UplinksBluetooth LE, Wi-Fi, 4G/GSM, Ethernet or USB, specified per unit
Onboard statusCharacter LCD, multi-colour status LED and buzzer, dry relay output
Supply7 V to 24 V DC; PoE (802.3af) available on the Ethernet variant
Operating temperature0 °C to 45 °C, indoor / covered installation
Ingress protectionIP20 standard; IP68 outer enclosure optional
